穿梭车货架

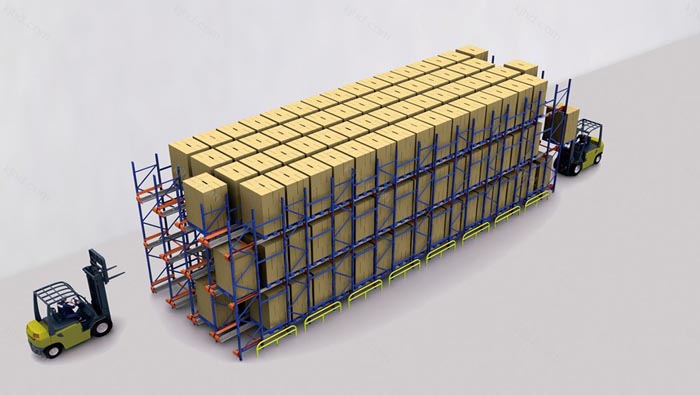

穿梭车货架系统具有存储密度大、存取效率高，更多品类的管理能力等特点，可以实现先进先出和先进后出两种存储模式，叉车不用开进货架巷道内。货架系统由智能穿梭车及穿梭车货架组成，还可以和自动堆垛系统整合成全自动存储系统。
穿梭车货架系统无需驾驶叉车到货架巷道内，操作时间节省一半，而且相对于驶入式货架系统作业叉车的需求量要少很多，适用于货物周转量大的仓库，存取容易，不同导轨层面可以放置不同的货物，存储区域面积使用率更高。
Shuttle racking system is characterized by high storage density, high access efficiency and high management ability over more varieties of goods. Either FIFO or FILO modes can be configured. It is not necessary to drive forklift into the aisle of racking. This racking system is composed of intelligent shuttle and shuttle racking, and can be also integrated with automatic stacking system to form automatic storage system.
As shuttle racking system does not require drive of forklift into aisle, the operation time can be reduced by a half. In addition, compared with drive-in racking, it requires much less forklift. It is suitable for warehouse with high goods turnover, and is characterized by easy access, allowing placement of different goods on different guide rail levels, and higher storage area use rate.

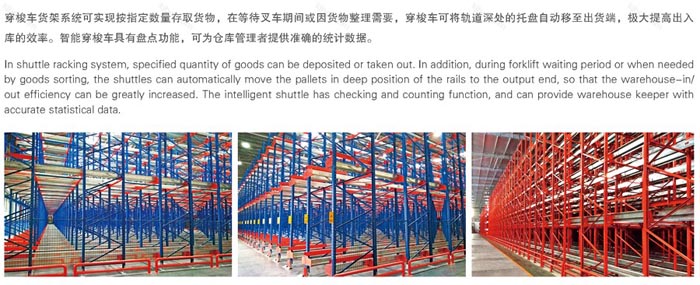

穿梭车货架系统可实现按指定数量存取货物，在等待叉车期间或因货物整理需要，穿梭车可将轨道深处的托盘自动移至出货端，极大提高出入库的效率。智能穿梭车具有盘点功能，可为仓库管理者提供准确的统计数据。
In shuttle racking system, specified quantity of goods can be deposited or taken out. In addition, during forklift waiting period or when needed by goods sorting, the shuttles can automatically move the pallets in deep position of the rails to the output end, so that the warehouse-in/out efficiency can be greatly increased. The intelligent shuttle has checking and counting function, and can provide warehouse keeper with accurate statistical data.

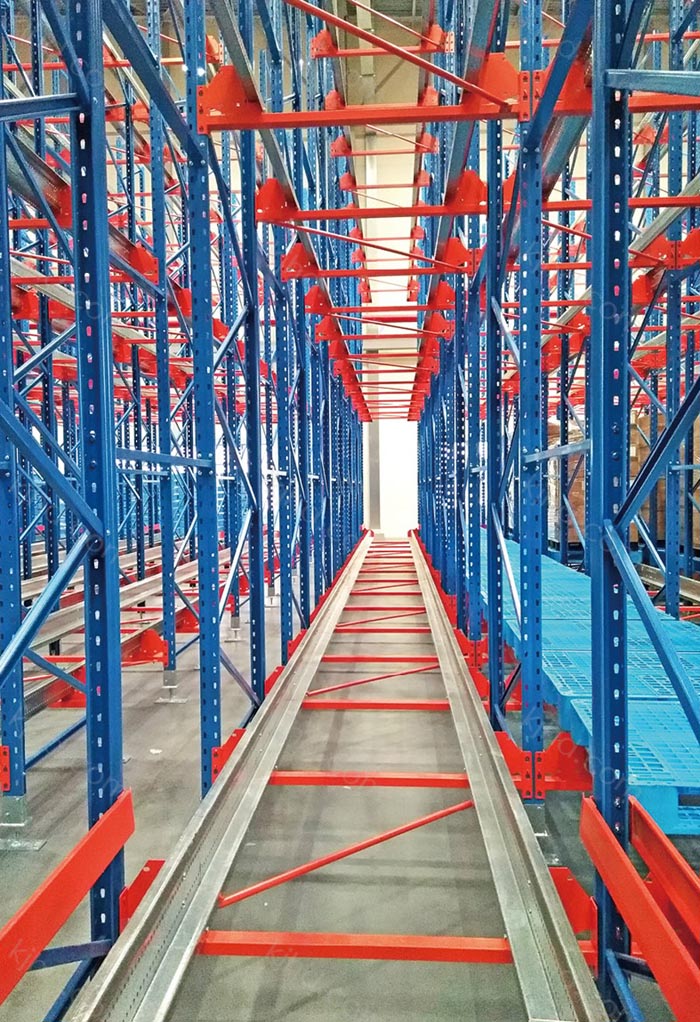

穿梭车货架由立柱片、连接杆、牛腿梁、可调地脚、牛腿、托盘导向板、镀锌导轨、防撞柱、叉车定位板等组成。牛腿梁将立柱片及导轨连接成一个单元整体，并可设置水平拉杆，不仅保证了货架的精度也有效提高了货架的整体稳定性。立柱片的可调地脚为高强度螺栓，不仅可以确保导轨水平方向上的安装精度，还可有效降低地面的不均匀沉降带来的影响。镀锌导轨上层放置托盘，下层用于智能穿梭车行走。镀锌导轨上部采用宽口设计，方便将智能穿梭车放入导轨。

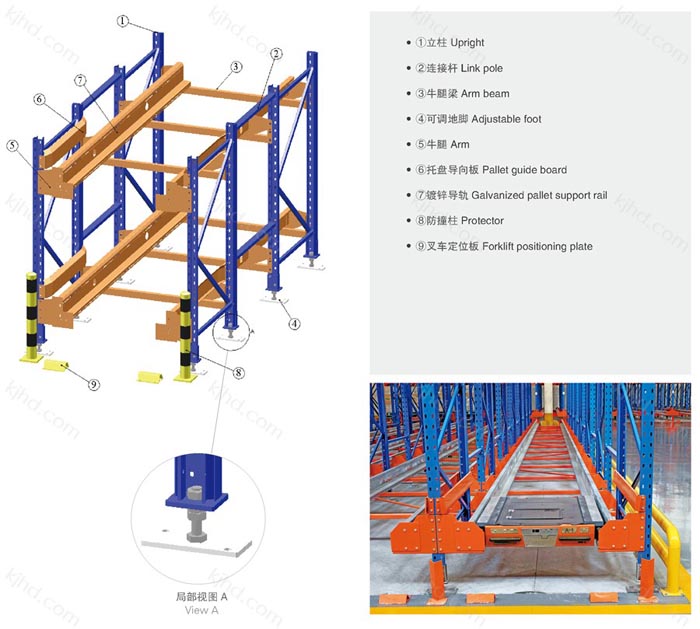

Shuttle racking is composed of upright, link pole, arm beam, adjustable foot, arm, pallet guide board, galvanized pallet support rail, protector, and forklift positioning plate. The arm beam connects the upright and the pallet support rail to form an integral unit, and horizontal bar can be configured, so that the precision of the racking can be guaranteed while the overall stability can be effectively enhanced. The adjustable feet of the upright frame are high strength bolts, which can not only ensure the installation precision of the guide rail in horizontal direction but also effectively mitigate the impact caused by uneven subsidence of floor. Pallets are placed on the upper surface of the guide rail and intelligent shuttle runs on the lower part of the guide rail. Wide opening design is used for the upper part of the guide rail, so that the intelligent shuttle can be conveniently placed into the guide rail.
